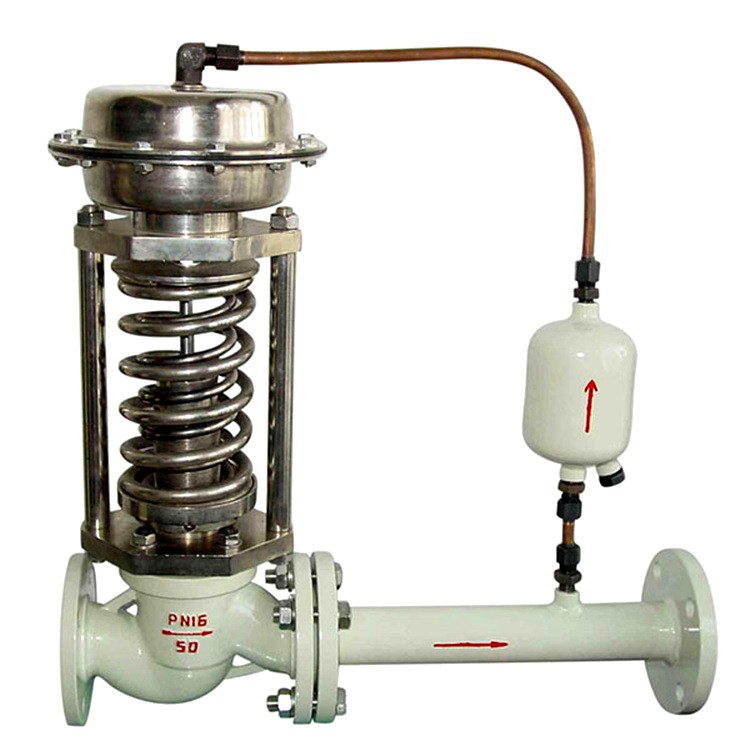

ZZYM Sleeve type self-operated Control valve

  • Product Item：ZZYM
  • Pressure：PN16 ~ 100,150LB ~ 600LB Medium：Water,oil,steam,gas Temperature :-29～425℃ Body material：WCB LCB CF8 CF3 CF8M CF3M Description：
  • Pressure：PN16 ~ 100,150LB ~ 600LB
  • Temperature :-29～425℃
  • Body material：WCB LCB CF8 CF3 CF8M CF3M
    • ZZYP Self actuated pressure control valve , Self regulating Pressure Control Valve
    Inquiry Send Email

    Description

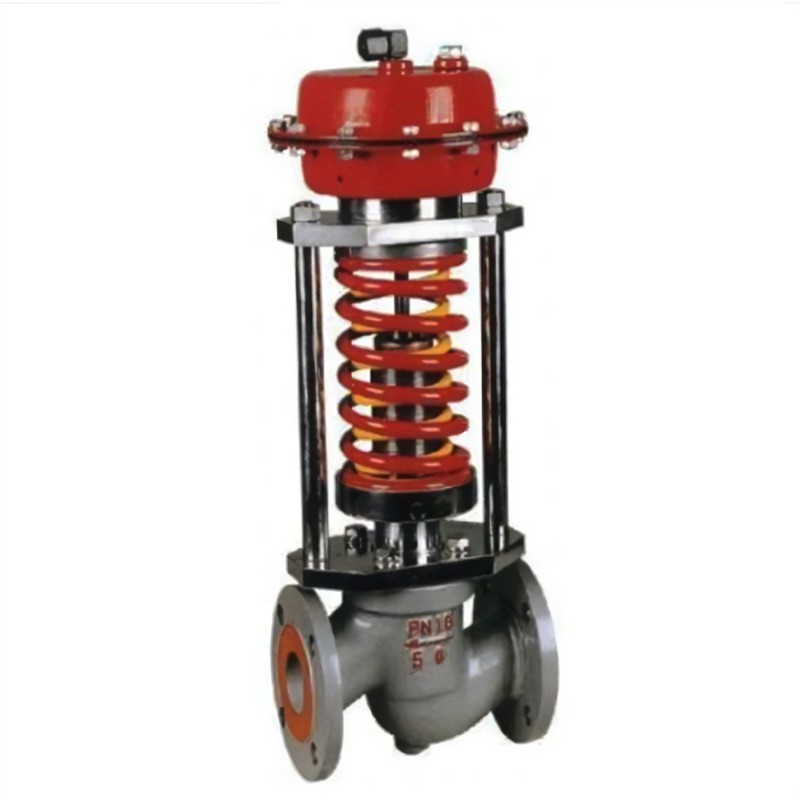

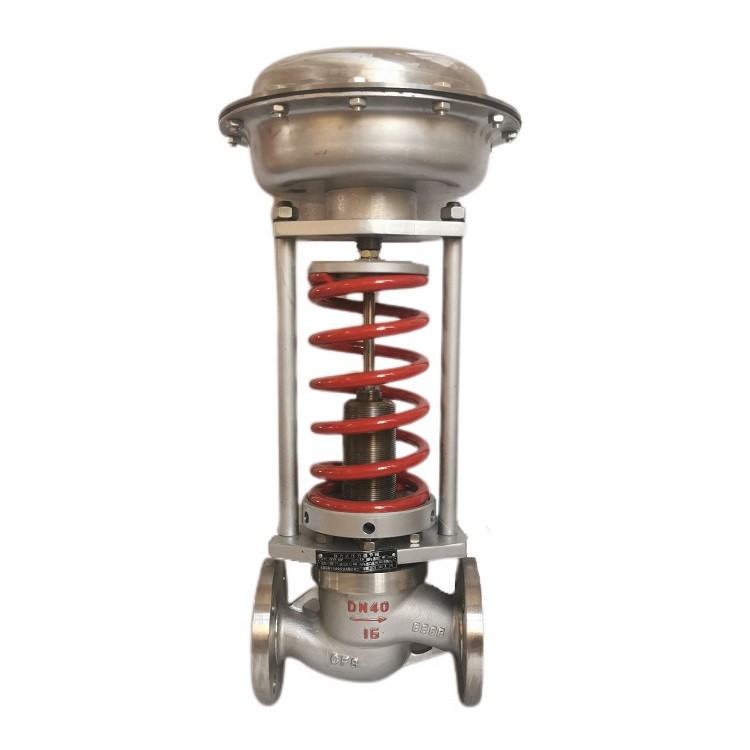

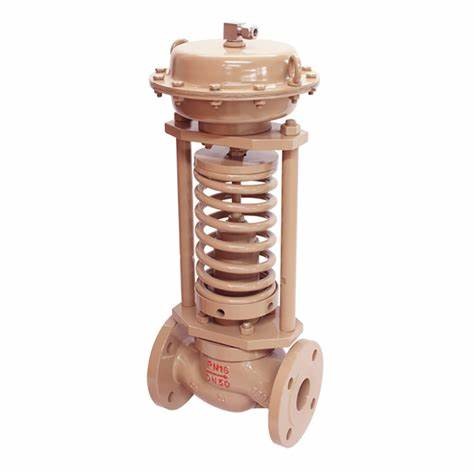

    ZZYM Sleeve type self-operated Control valve


    • ZZYM SLEEVE TYPE SELF-OPERATED REGULATOR FEATURE

      ZZYM Sleeve type self-operated regulator is sleeve seat structure, which can adjust the pressure as the set value with it’s medium own energy and without any outer energy.The most advantages of ZZYM Sleeve type self-operated regulator is that it can be suitable for the working place of no power and no pneumatic equipment available, additional,ZZYM Sleeve type self-operated regulator can save energy for the end-user, and the pressure is adjustable within the set range.

      Self-operated regulator has the following types according to the different working conditions:

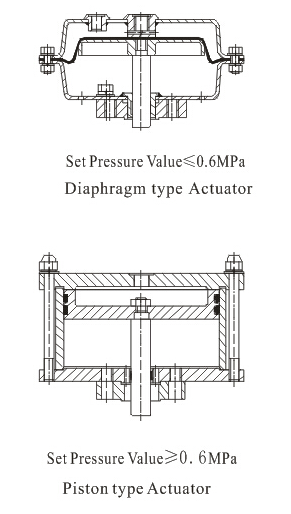

      ZZYP(single-seat type), ZZYM(sleeve type) and ZZYN(double-seat type), and ZZYM Sleeve type self-operated regulator also has three different covers such as common one, long-neck one and cooling type. For different applications, ZZYM Sleeve type self-operated regulator has three different types of actuators:film/piston/bellows.

      ZZYM Sleeve type self-operated regulator has other advantages as smart and accurate regulating,taking up small space and simple operation and it’s widely used in the pressure control of gas,steam or water in petroleum, chemical, electric power, metallurgy, food, textile, machinery, civil construction industry.

      ZZYM Sleeve type self-operated regulator is designed and manufactured according to the standard of AMSE/API/BS/DIN/GB

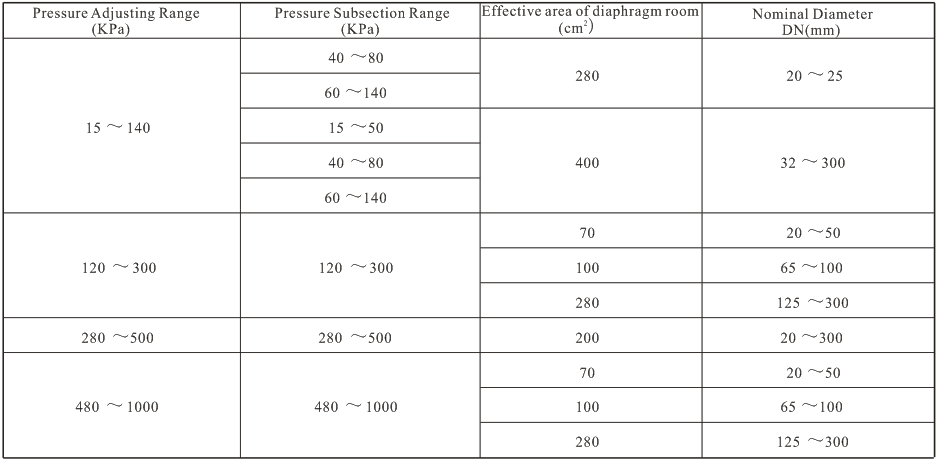

    • ZZYM SLEEVE TYPE SELF-OPERATED REGULATOR PRESSURE ADJUSTING RANGE


      Note:1. ZZYM Sleeve type self-operated regulator take diaphragm type actuator for example. If the pressure of ZZYM Sleeve type self-operated regulator is 1000～3000KPa, please consult our customer service or sales people.
      2.The table above is Pressure Subsection Range. Choose the median around for pressure control. The smaller the pressure range, the higher the precision . Therefore it should be used within the pressure setting range.
      3. If the pressure ratio between before valve and after valve of ZZYM Sleeve type self-operated regulator with the pressure control after valve exceeds 10,it needs multi-stage decompression or two ZZYM Sleeve type self-operated regulator in series (can choose control valve with director except pressure before valve is below 0.8MPa)
      4.It needs special design when the nominal pressure is over 6.3MPa.
      5.This series ZZYM Sleeve type self-operated regulator’s lowest pressure control is 15 KPa.

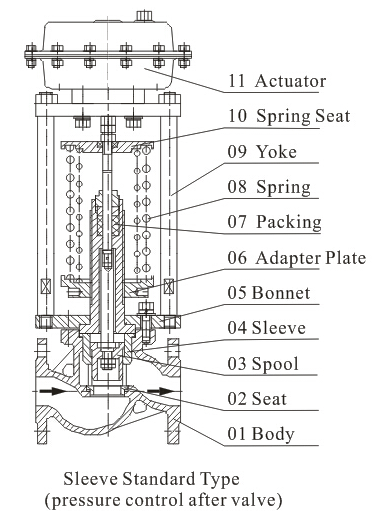

    • ZZYM SLEEVE TYPE SELF-OPERATED REGULATOR STRUCTURE

    • ZZYM SLEEVE TYPE SELF-OPERATED REGULATOR MATERIAL

      Component name Control Valve Material
      Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
      Valve spool/Seat 304/316/316L(overlaying stellite alloy)
      Packing Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite
      Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
      control valve stem 2Cr13/17-4PH/304/316/316L
      Diaphragm Cover Normal:Q235,Special:304
      Diaphragm NBR with reinforced polyester fabric
      control valve Spring Normal:60Si2Mn,Special:50CrVa

    • ZZYM SLEEVE TYPE SELF-OPERATED REGULATOR PARAMETER

      Nominal diameter
      DN(mm)             		20 25 32 40 50 65 80 100 125 150 200 250 300
      Coefficient(KV) 5 8 12.5 20 32 50 80 125 160 320 450 630 900
      Rated stroke(mm) 8 10 12 15 18 20 30 40 45 60 65
      Nominal diameter
      DN(mm)             		20
      The seat diameter
      DN(mm)             		2 3 4 5 6 7 8 9 10 12 15 20
      Coefficient(KV) 0.02 0.08 0.12 0.20 0.32 0.5 0.80 1.20 1.80 2.80 4.0 5
      Nominal pressure MPa 1.6，2.5，4.0，6.4(6.3)/2.0，5.0，11.0
      Bar 16，25，40，64(63)/20，50，110
      Lb ANSI：Class150、Class300、Class600
      pressure range
      KPa             		15～50、40～80、60～100、80～140、120～180、160～220、200～260、
      240～300、280～350、330～400、380～450、430～500、480～560、540～620、
      600～700、680～800、780～900、880～1000、900～1200、1000～1500、
      1200～1600、1300～1800、1500～2100、
      Flow characteristic Quick opening
      Adjust the accuracy ±5-10(％)
      Working
      TemperatureT(℃)             		-60～350(℃)    350～550(℃)
      Leakage Class IV；Class VI

    • ZZYM SLEEVE TYPE SELF-OPERATED REGULATOR OUTLINE DIMENSION


    Nominal diameter
    DN(mm)     		20 25 32 40 50 65 80 100 125 150 200 250 300
    B 383 512 603 862 1023 1380 1800 2000 2200
    L(Pn16、25、40) 150 160 180 200 230 290 310 350 400 480 600 730 850
    L(PN64) 230 260 300 340 380 430 500 550 650 775 900
    pressure range
    KPa     		15～140 H 475 520 540 710 780 840 880 940 950
    A 280 308
    120～300 H 455 500 520 690 760 800 870 900 950
    A 230
    280～500 H 450 490 510 680 750 790 860 890 940
    A 176 194 280
    480～1000 H 445 480 670 740 780 780 850 880 930
    A 176 194 280
    Weight (Kg)
    (PN16)     		26 37 42 72 90 112 130 169 285 495 675
