Description

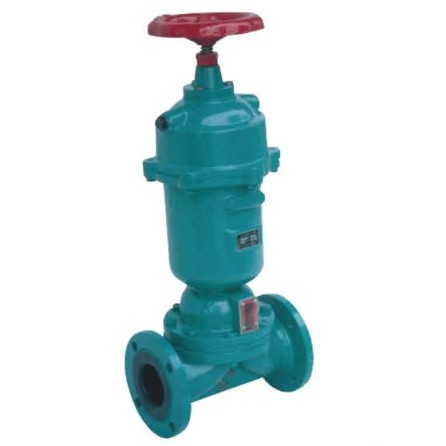

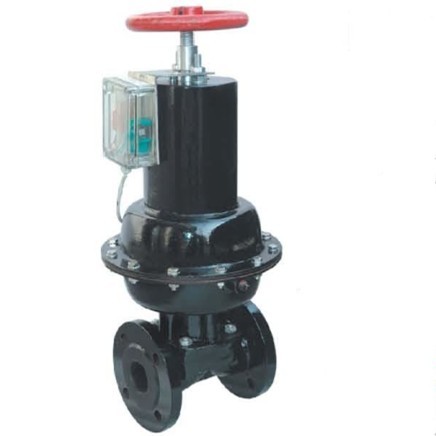

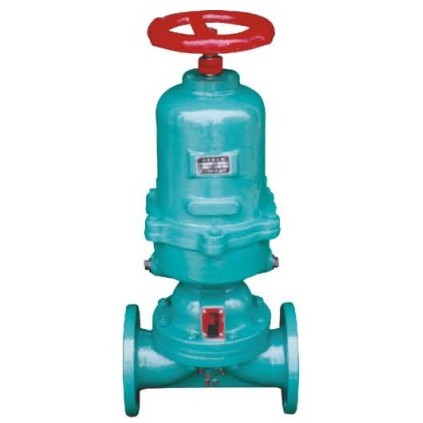

G6K41 Normally open flanged rubber lined diaphragm valve
Diaphragm valve is one special cut-off valve; Compared to other valve, diaphragm valve are equipped with below fetures:
1. No leakage inside due to the elastic seal;
2. Streamlined runner and small pressure loss
3. No need of packing, then no outward leakage
4. Parts above the diaphragm such as bonnet, stem, etc can not be eroded by medium, for the diaphragm cut off the connection between medium and bonnet.
5. Replaceable diaphragm and low maintenance cost
6. Various lining materials to choose for different medium, and good anti-corrosive.
Standard of G6K41 Normally open flanged rubber lined diaphragm valve
1. Design and manufacture: GB12239
2. Structure length: GB12221
3. Flange end standard: HG20592
4. Test and inspection: GB/T13927

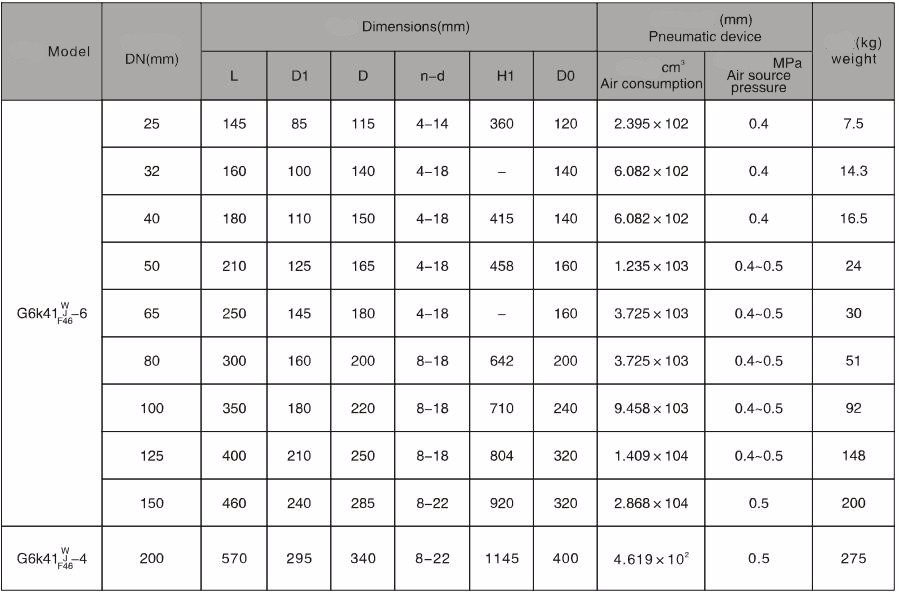

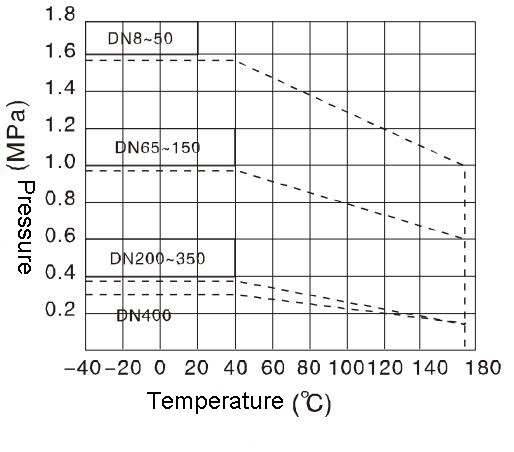

Parameter of G6K41 Normally open flanged rubber lined diaphragm valve
Model
PN(MPa)
Pressure (Mpa)
Applicable medium
Working Temperature
Shell Test
Sealing Test
G6K41(W/J/F46)-6
0.6
0.9
0.66
Non-corrosive fluid
≤100℃
Generally corrosive fluid
≤85℃
G6K41(W/J/F46)-4
0.4
0.6
0.44
Strong acid, alkali and various
organic solvents (Exclusive of molten alkali metal and elemental fluorine)
≤150℃

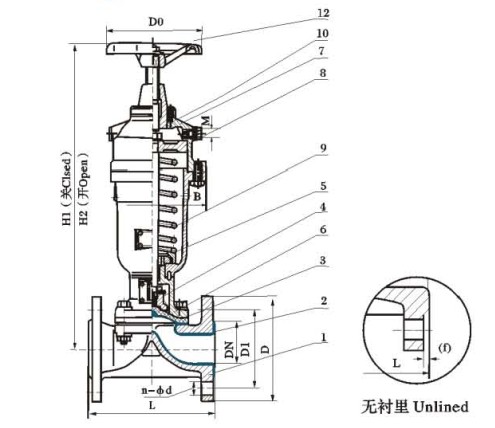

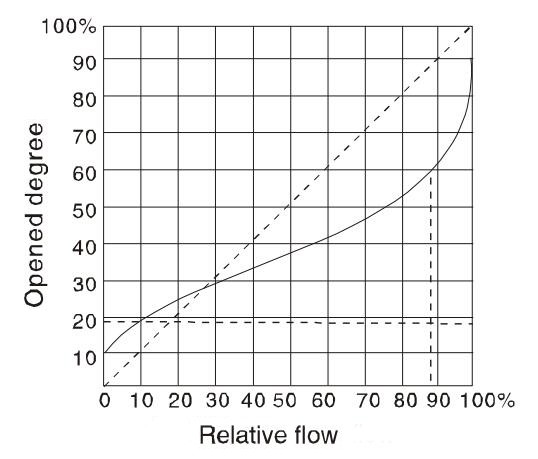

Main Parts of G6K41 Normally open flanged rubber lined diaphragm valve
| Part Name | Valve Body | Disc | Cylinder, Cyinder cover | Screw, body, piston | Diaphragm |
| Material | HT200 Lining fluorine plastic, Lining Rubber | HT200 | HT200 | 35 | Natural rubber, fluorine plastic |
