Description

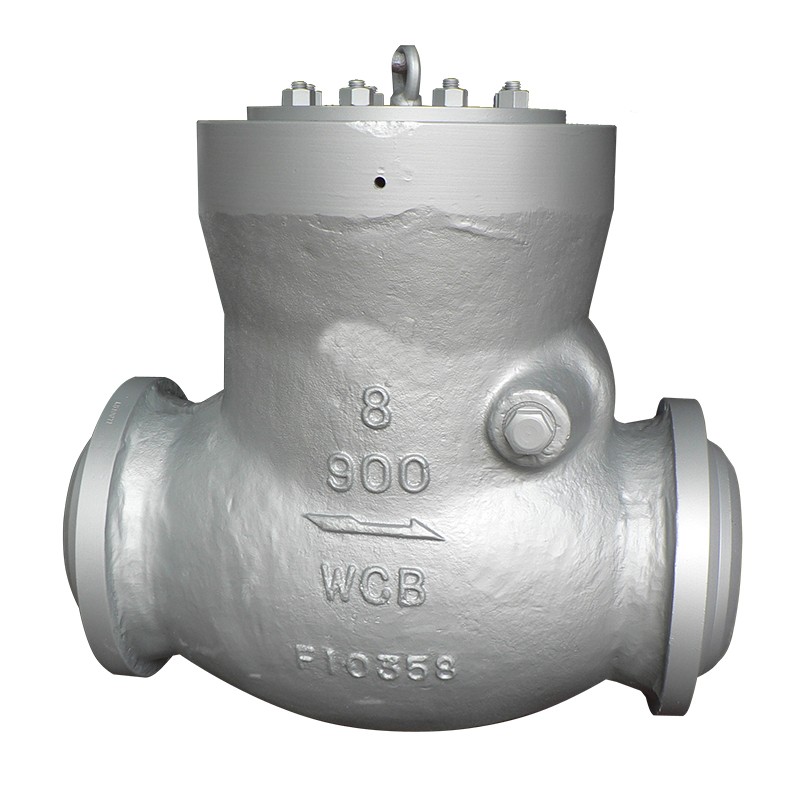

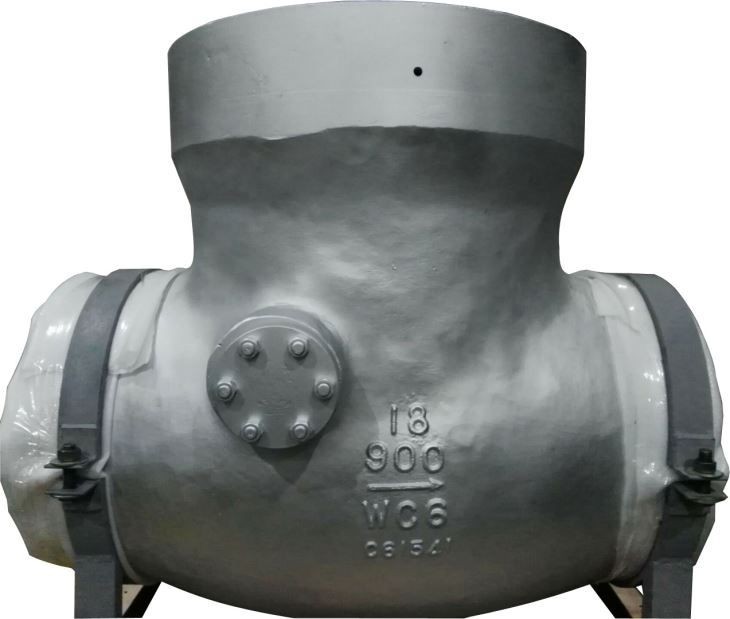

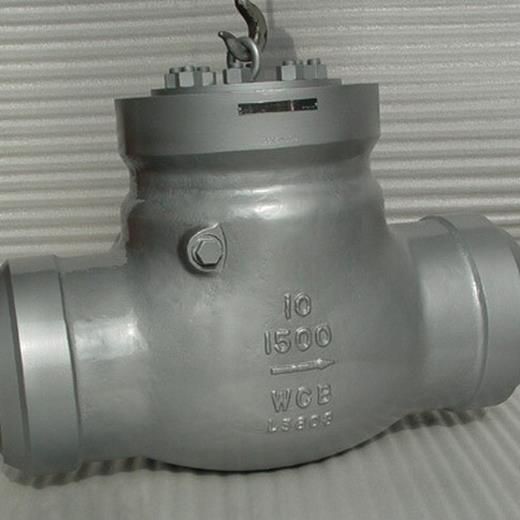

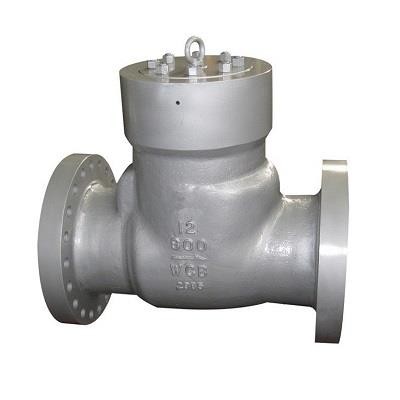

Pressure Seal Bonnet Check Valve
High Pressure Swing Check Valve, Ansi Class 1500Lbs, 2500Lbs, Api 6d, Pressure Seal, Self Sealing Bonnet, Flanged, Rf, Rtj, Bw Ends, Carbon Steel, Stainless Steel, Duplex Stainless Steel Swing Check Valves, Non Return Valve, Industrial Cast Steel Swing Check Valve Supplier, Exporter.
Specifications For Swing Check Valve 1500LBS – 2500Lbs (Flanged, Bw Ends)
1. Design & Manufacture: API6D, ANSI B16.34, BS18682. Pressure Seal Bonnet, Swing Type Disc,
3. Size Range: 2″ to 24″.
4. Pressure Ratings: ANSI 1500LBS (size 2″ to 24″), 2500LBS (size 2″ to 14″)
5. End Connections: Flanged (RF, RTJ), Butt Weld.
6. Materials: WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, 4A, 5A or Equivalent,
7. Various Trim Materials Available to Suit Service Conditions, Half Stellite, Full Stellite etc.
8. NACE MR 0175 on Request

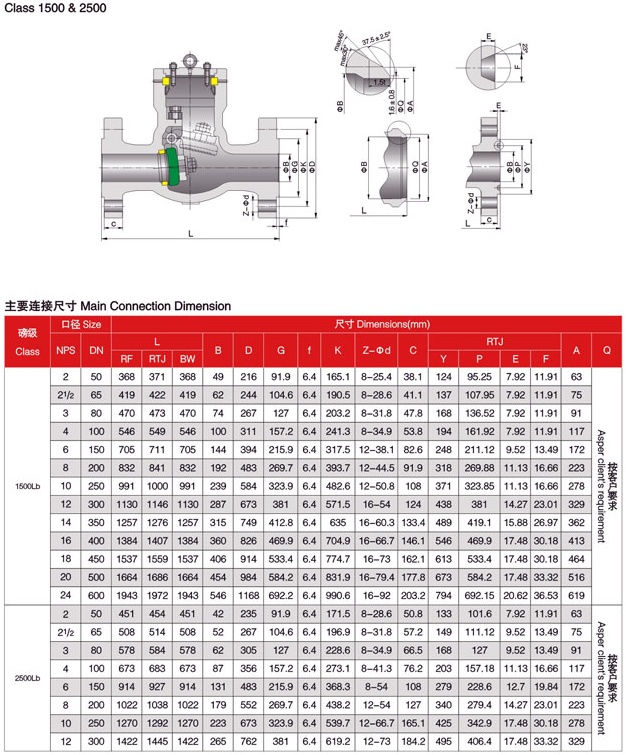

SWING CHECK VALVE 1500LB - 2500LB DIMENSIONS:
