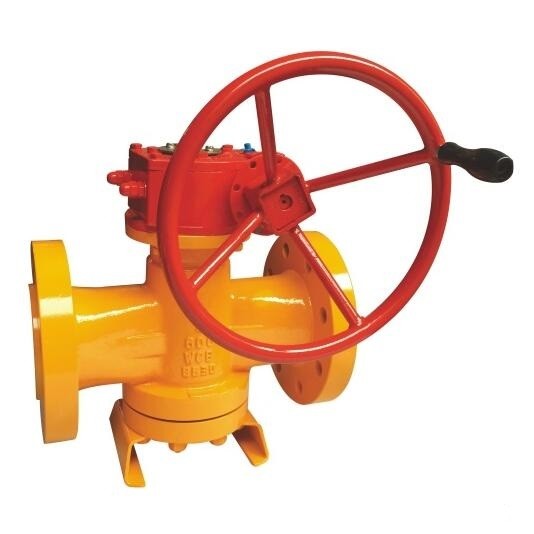

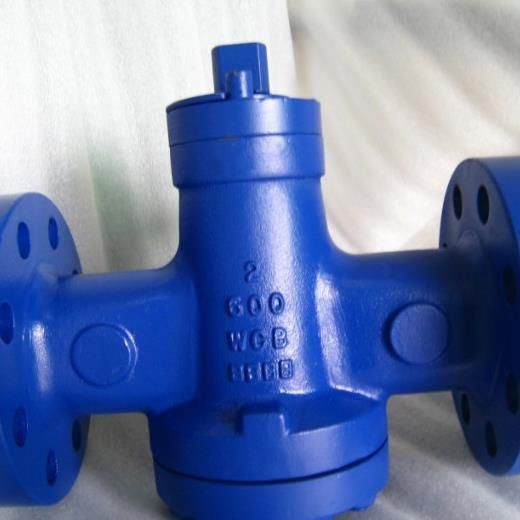

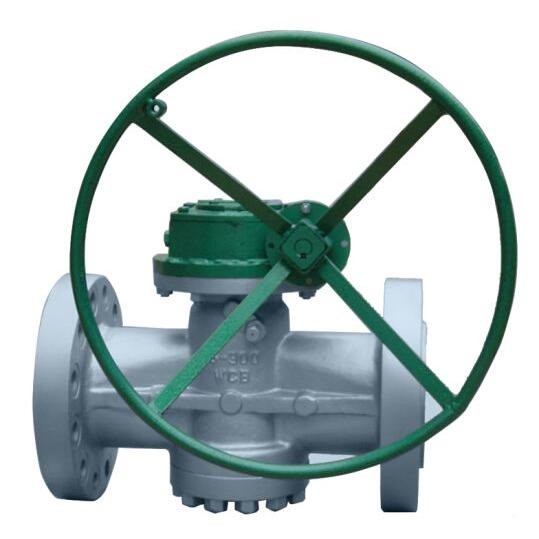

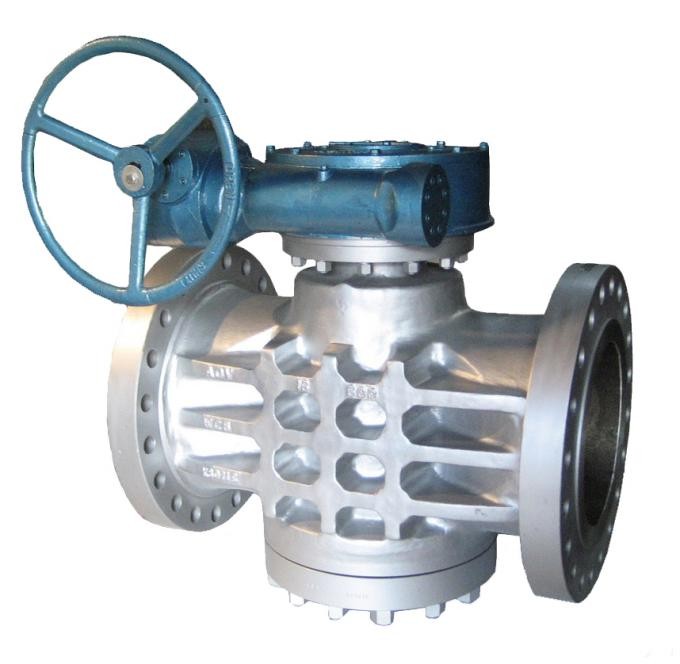

Metal Seat Lubricated Plug Valve

Design Features:

Nominal Size Range: NPS 1/2”~ 14”
Pressure Rating: Class 150LB ~ 900LB
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)
Design Specifications:
Design: API 599, API6D
Pressure-temperature rating: ASME B16.34
Face-to-face dimensions for butt weld and flanged valves: ASME B16.10
Flange design: ASME B16.5
Butt welding design: ASME B16.25

Actuators:

Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels
Body Material:
A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel),
All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements as applicable.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
Quality Control (QC):
The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.

Pressure Testing:

Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.

Standard Material specifications

NO.	Part name	Material
		A216 WCB	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
1~2	Body/Nut	A193 B7/A194 2H	A193 B8/A194 8	A193 B8M	A194 8M
3	Cover	A216 WCB	A351 CF8	A351 CF8M
4	Gasket	Flexible graphite+stainless steel/PTFE
5	Plug	A182 F304	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
6	Body	A216 WCB	A351 CF8	A341 CF8M	A182 F304L	A351 CF3M
7	stem	A182 F410	A182 F304	A182 F316	A182 F304L	A351 CF3M
8	O-ring	NBR/FEP/sBR
9	Packing	Flexible graphite/PTFE
10	Gland	A216 WCB	A351 CF8	A351 CF8M
11~12	Oichozzle/check valve	Material see body
13	Wrench	AsTM A47-32510 A216 WCB

Dimensions(mm) and Weights(Kg)

Class 150Lb
size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF	mm	108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	10	12	14	17	19	21	29	33	48	75	98	125	171	230	370

Class 300Lb
size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	12	14	16	19	21	24	31	36	61	86	130	190	225	380	560

Class 600Lb
size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	14	16	18	20	24	29	35	47	91	129	210	320	660	920	1250

Class 900Lb
size	inch	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6	8	10	12	14
L-RF,BW	mm	229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H	mm	180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W	mm	400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight	Kg	17	19	21	24	30	37	44	65	110	160	255	380	810	1050	1460
