Description

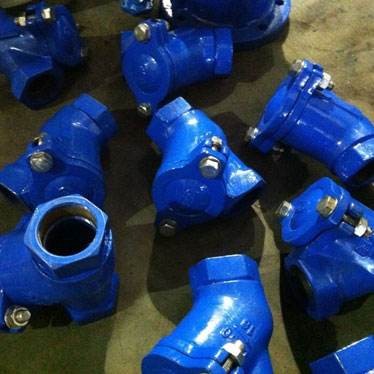

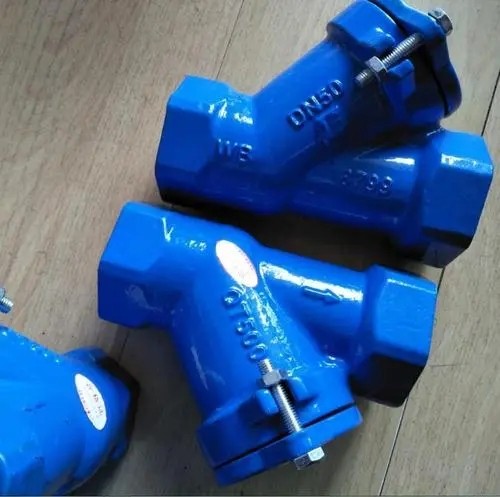

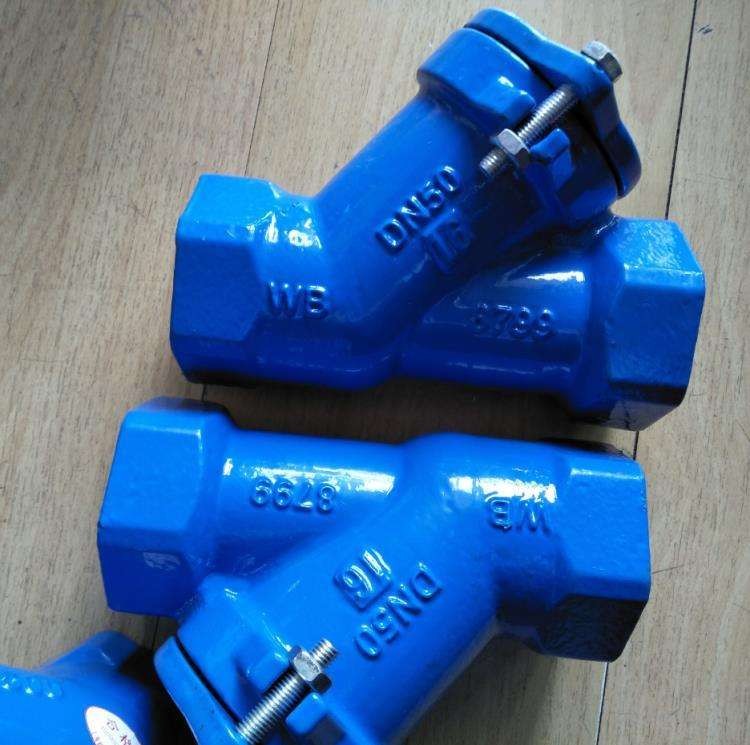

Thread Ends of Ball Check Valve BS EN12334 / BS EN1074-3
Design Standard: BS EN1074-3/ BS EN 12334
Inspection & testing: BS EN12266-1
Working Pressure:16bar (PN16)
working Temperature: -20℃ to 100℃

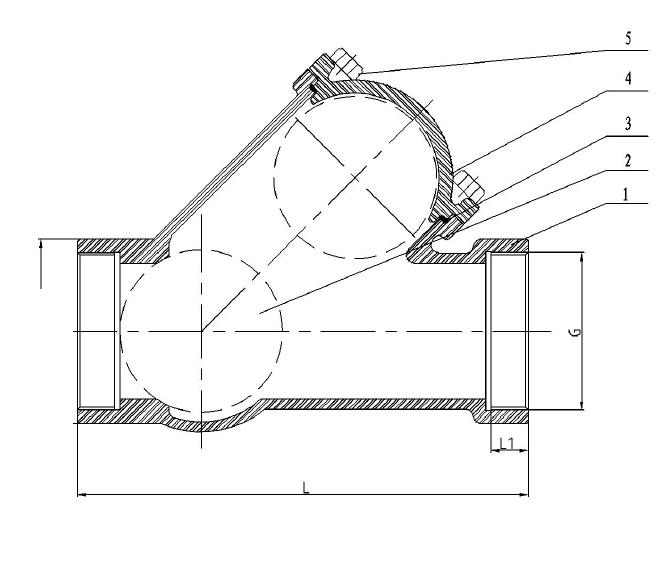

Material List: Thread Ends of Ball Check Valve BS EN12334 / BS EN1074-3
| NO. | Part | Material |
| 1 | BODY | GGG40/50 |
| 2 | BALL | AL/DI + NBR/EPDM |
| 4 | BONNET | GGG40/50 |
| 3 | GASKET | NBR/EPDM |
| 5 | Bolts | STAINLESS STEEL |

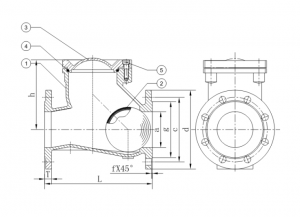

Flanged Ends of Ball Check Valve DIN F6
DESCRIPTION OF NON RETURN BALL VALVE (ball check valve)
1.Design Standard: BS EN1074-3/BS EN 12334 / AWWA C508.
2.Face to Face: EN558. S10/S48,ASME B16.10,(DIN3202 F6/BS5153)
3.Flanges Standard: BS EN1092-2,ASME B16.1, AWWA C508
4.Inspection & testing: BS EN12266-1,AWWA C508
5.Working Pressure:16bar 250PSI
6.working Temperature: -20℃ to 100℃(4°F to 212°F)

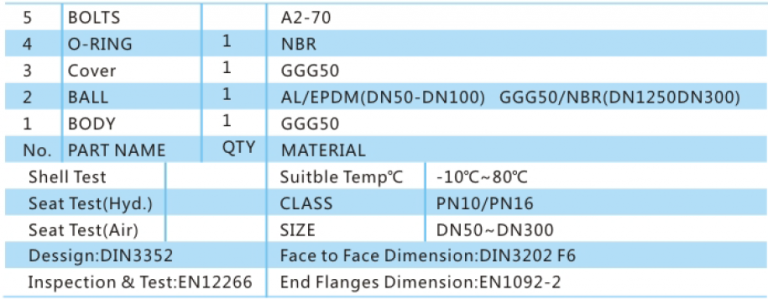

Material List: Flanged Ends of Ball Check Valve DIN F6

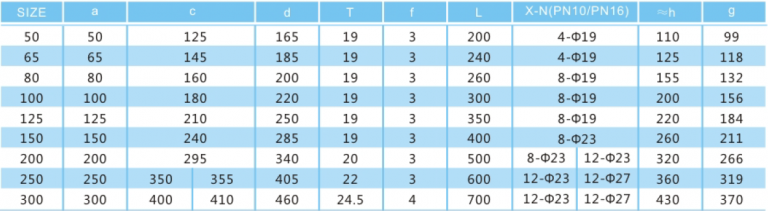

Dimensions (mm): Flanged Ends of Ball Check Valve DIN F6, PN10/16
