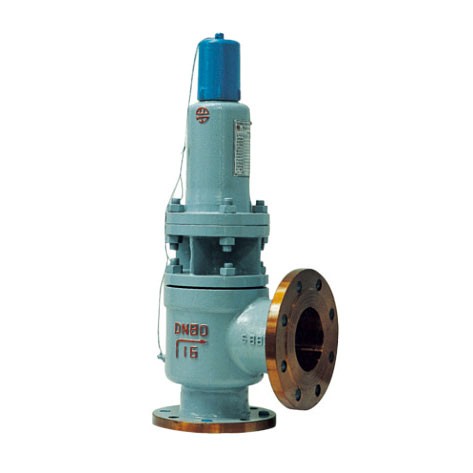

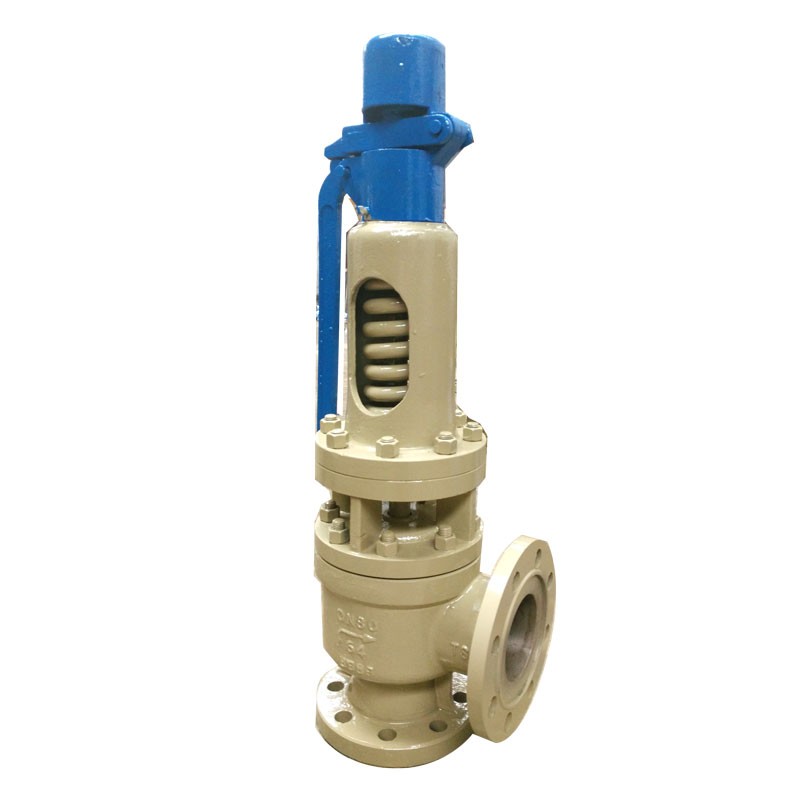

Type A48SC - Safety Valve

Full lift safety valve for high temperture and high pressure condition, metal to metal seated, with plain type lever, Inlet: Flanged connection acc. to ANSI B16.5 Outlet: Flanged connection acc. to ANSI B16.5Open bonnet, with radiator

Safety Valves/pressure safety valves, angle type

Full lift safety valve for high temperture and high pressure condition, metal to metal seated, with plain type lever,
Inlet: Flanged connection acc. to ANSI B16.5
Outlet: Flanged connection acc. to ANSI B16.5
Open bonnet, with radiator

Applications

Provided as safety device for protection excessive pressure in pressure vessels. Approved for gases, vapours and fluids in high temperature and high pressure condition.

Standards Compliance

Design and Manufacture: API RP 520
Face to Face(end to end): API 526
Test and Inspection: API 527

Mormal Pressure	PN	150	300	600	900	1500	2500
Body strength	Ps(Mpa)	3.0	7.5	15	22.5	38.0	63
Set pressure	Pk(Mpa)	0.1-2	1.6-5	3.2-10	8-15	10-25	16-40
Seal pressure	Pm(Mpa)	90%Pk
Reseation pressure	Ph(Mpa)	≥90%Pk
Relieving Pressure	Pp(Mpa)	≤1.03Pk
Lift height	H(mm)	≥1/4 d0
Appropriate temp.	C				≤420℃
	I				≤500℃
	V				≤540℃
Appropriate Medium	Fluids, Steam
