500X Pressure Relief/Pressure Sustaining Valve500X Pressure Relief/Pressure Sustaining Valve500X Pressure Relief/Pressure Sustaining Valve500X Pressure Relief/Pressure Sustaining Valve

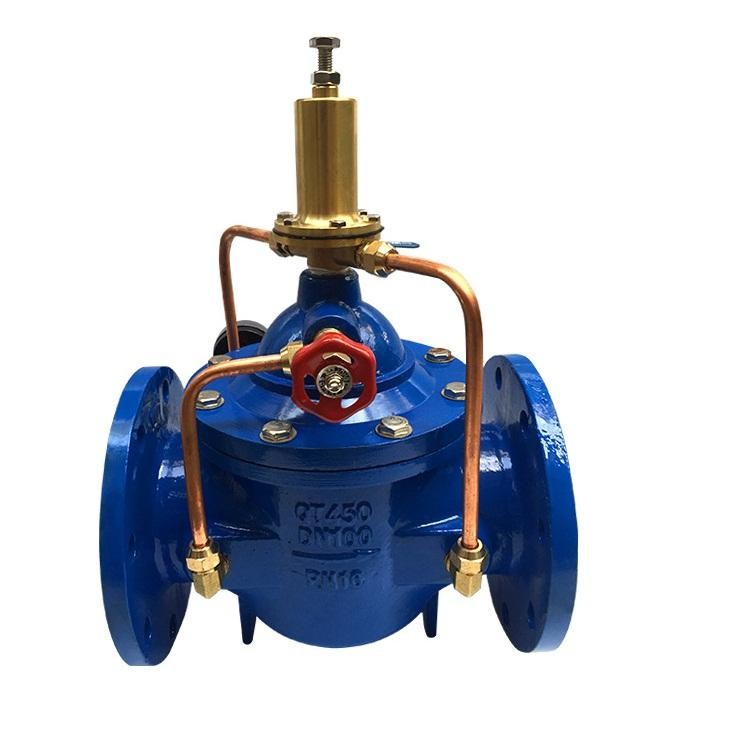

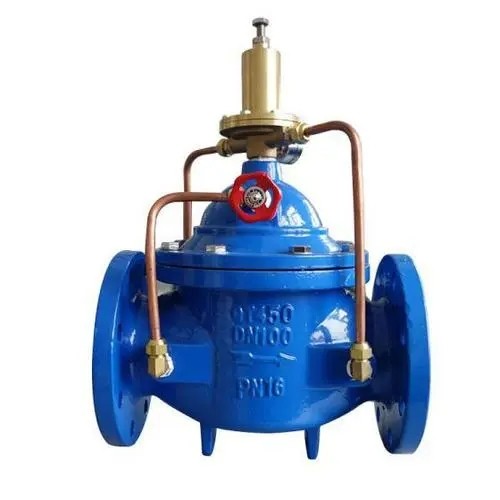

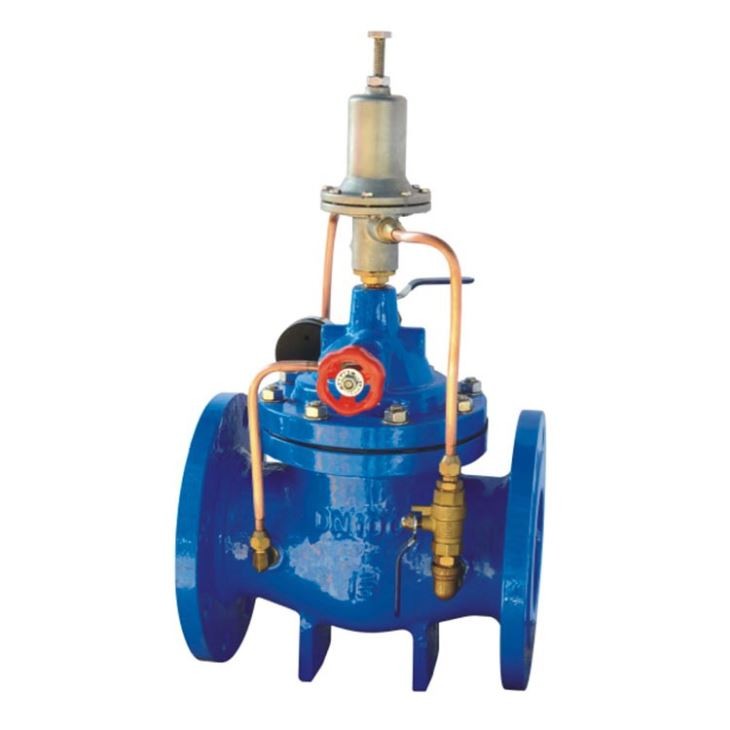

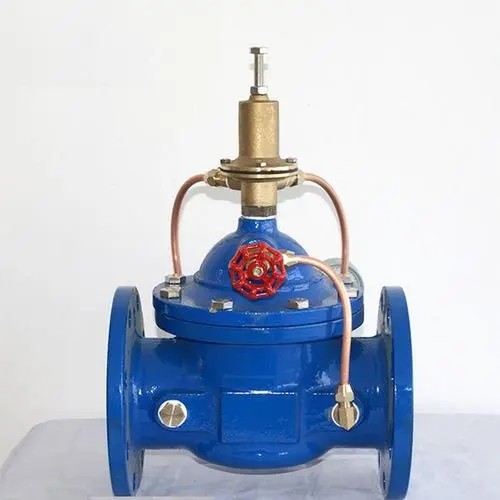

500X Pressure Relief/Pressure Sustaining Valve

  • Product Item：500X
  • Body:Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
  • Diaphragm: Rubber
  • Pressure: PN10, PN16, PN25
  • Flange: EN1092-1, ASME B16.5
    • 500X Pressure Relief Pressure Sustaining Valve , 500X Water Pressure Relief Sustaining Valve , Pressure Relief Sustaining Valve
    Inquiry Send Email

    Description

    500X Pressure Relief/Pressure Sustaining Valve

    Overview

    500X Pressure Relief, Pressure Sustaining Valve maintains the inlet pressure at minimal reselected value. To hold a steady line pressure the valve is opening fast and closed gradually to prevent surge. If installed on a by-pass line, main line pressure is accurately controlled by relief of excess pressure.

    500X Control Valve is used in the pipeline system to prevent of surpassing pressure or to keep the pressure of it, to reduce the water hammers shock after the pump is closed and also used as a water hammer remover in the large water supply system.

    A self cleaning filter screen is placed on the inlet of the valves control system, which stops the suspension grains of the bigger specific gravity and diameter from going into the system by means of the bigger specific gravity of the fluid to ensure the main valves water supply pressure at the upstream at the set value, and to get the system circulated smoothly without any resistance. This valve features by sensitive open-close, safety, reliability, stable motion and long duration.

    Materials


    Serial No. Part Material
    1 Body Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
    2 Pin Bronze
    3 Seat 410 S.S. / SS 304 / SS 316
    4 O-ring Gasket NBR
    5 O-ring NBR
    6 O-ring washer Cast Iron
    7 O-RING NBR
    8 Stem 410 S.S. / SS 304 / SS 316
    9 Disc Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
    10 Diaphragm Rubber
    11 Diaphragm washer Bronze
    12 Ball valve Bronze
    13 Nut H62
    14 Spring ASTM 6150
    15 Cover Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
    16 Pilot Socket H62
    17 Nut 35
    18 Stud 35
    19 Ball valve Bronze
    20 Pressure relief valve Bronze
    21 Ball Valve Bronze
    22 Pressure show
    23 Needle valve Bronze
    24 Micro-strainer 304
    25 Connection socket Cast Iron

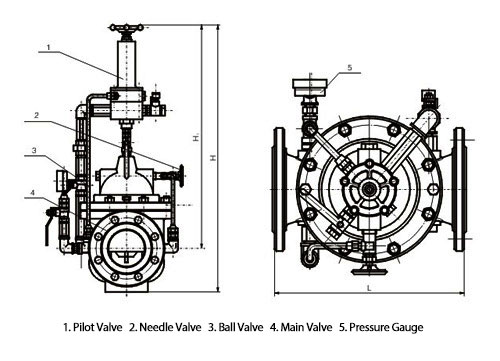

    Dimensions

    DNmm 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500
    L 180 180 180 203 203 235 285 360 400 455 585 650 800 860 915 980 1075
    PN10 D 105 115 135 145 160 180 195 215 245 280 335 390 440 500 565 615 670
    D1 75 85 100 110 125 145 160 180 210 240 295 350 400 460 515 565 620
    PN16 D 105 115 135 145 160 180 195 215 245 280 335 405 460 520 580 640 705
    D1 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 585 650
    PN25 D 105 110 135 145 160 180 195 230 270 300 360 425 485 550 610 660 730
    D1 75 85 100 110 125 145 160 190 220 250 310 370 430 490 550 600 660
    H 550 550 550 610 610 625 645 750 808 864 1135 1185 1325 1385 1445 1325 1430
    H1 460 460 460 516 516 520 538 596 655 710 805 855 955 990 1030 905 960

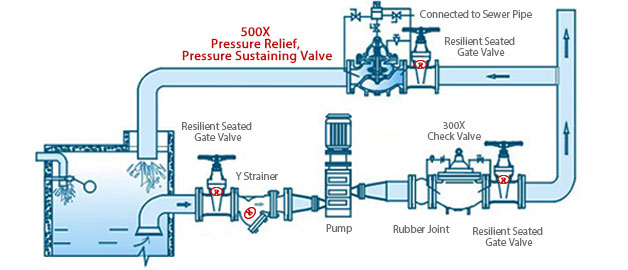

    Installation
