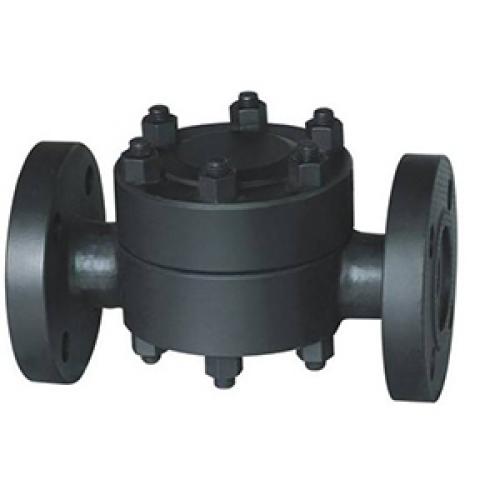

Description
Structural features
1. The working principle of the Thermodynamic Steam Trap is to rely on the difference of vapor and liquid density.
2. The valve body and bonnet are all made of forged steel/cast steel.
3. The valve clack and valve seat are made of special stainless steel. Through heat treatment and aging treatment, they are invariable and wear-resistant under high temperature and high pressure, which improves the service life of the trap.
4. The stainless steel heat preservation cover isolates and slows down heat loss, and prevents the air trap of the trap.
5. The fluid channel of the internal structure is designed strictly in accordance with Bernoulli equation, and the structure is reasonable.
6. Built-in flter makes the trap work in a clean environment.
7. Back pressure rate is as high as 80%
Advantage
1. This trap is featured with solid structure, light weight, small volume and different pressure without any adjustment.2. Having gas discharging equipment for rapidly discharging gas to ensure fast start.
3. Excellent abilities to endure steam and to resist frozen. It can be installed in free way.

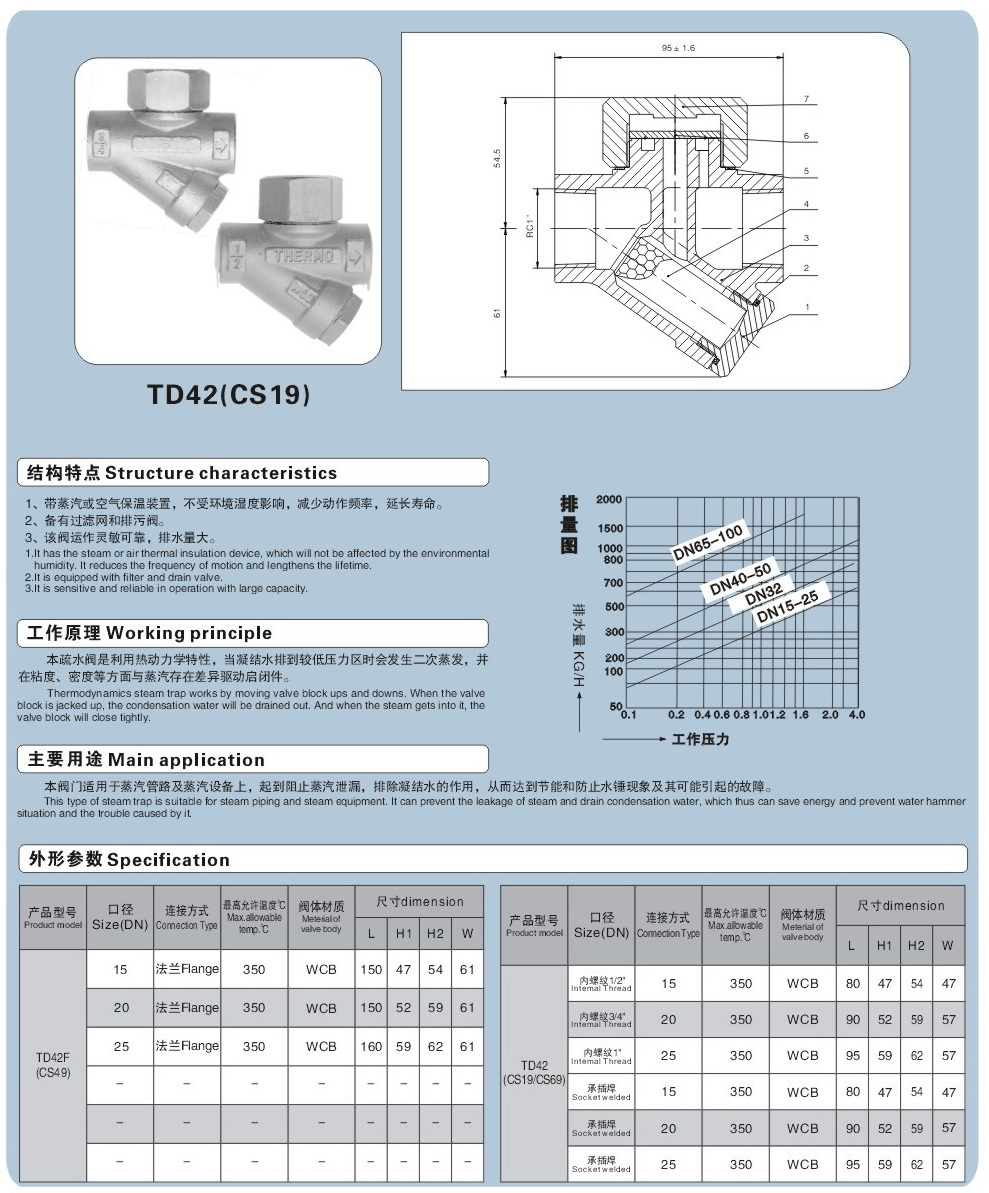

Specification:
Pressure Rating:1.6- 4.0Mpa
Size：DN15- 50
Material：WCB, A105, CF8 & CF8M.
Connection: Flanged, NPT,SW,BW
Certification: ISO9001, API 6D, and CE
